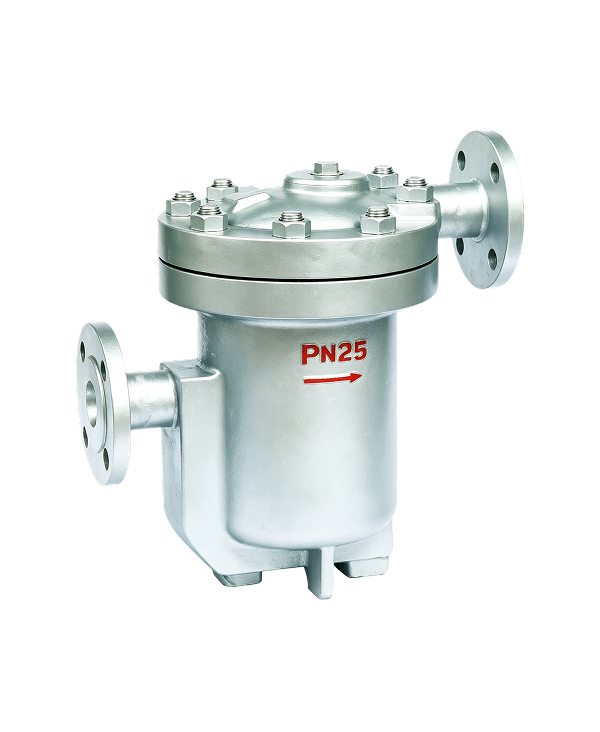

Steam Trap - Bell Shaped Float (inverted Bucket) Type

Size

DN15~DN65

Pressure

PN0.7~PN16

Material

WCB Carbon Steel, Internal Components Made Of 3Cr13 Stainless Steel

Medium

Steam And Condensate Water

Temperature

≤220℃

Standard

JB/T 9093

Model

CT・SER105/CT・SER110/CT・SER116

Product Features

Adopting a bell shaped float (inverted bucket) opening and closing structure, the steam blocking and drainage performance is stable.
Multiple connection methods including internal thread, flange, and socket welding are available, suitable for various types of steam pipelines.
Equipped with automatic air exhaust capability, effectively preventing air blockage and high heat exchange efficiency.
Strong anti impurity ability, not easy to block, suitable for condensate water conditions containing impurities.
Reliable operation, long service life, widely used in equipment such as steam heaters and heat exchangers.

Steam Trap - Bell Shaped Float (inverted Bucket) Type
Quality Control
Robot production
Automated assembly
industry leader
Annual production of 6 million units
ERP-MES-QMS
Accuracy is under control
Within 3 microns
Select high-quality alloy steel, stainless steel and other materials, Ensure that the valve body has both strength and toughness. Equipped with CNC equipment and testing instruments, Through precise temperature control and Pressure adjustment, Ensure that every product meets high-precision requirements, The error of the molded parts is extremely small.
Having high-precision CNC machining centers and CNC lathes.Build intelligent assembly lines for automatic modeling, assembly,painting, and other processes
In the field of valve manufacturing, Paili Valve Group has entered the forefront of the industry with advanced production equipment, and has built a complete production system with cutting-edge technology and exquisite craftsmanship.
In production, high-precision CNC machining centers perform precision machining on raw materials such as cast steel and stainless steel, ensuring component dimensions with micrometer level accuracy and improving efficiency and product consistency; Silica sol casting equipment produces high-quality castings that are dense, high-strength, and corrosion-resistant, solidifying product performance.
The testing process is equally strict: pressure testing equipment simulates extreme working conditions to ensure stable high-pressure sealing of valves; Non destructive testing and spectral analyzer comprehensively detect materials and finished products, strictly controlling quality and safety.
